Aluminum casting line -TPAD.F0001
✔️ Model: TPAD.F0001
✔️ Manufacturer: TPA
✔️ Origin: Việt Nam
Aluminum casting line
|
DESCRIPTION |
Application |
Machine tending : Metal casting |
|
Professions |
Metal, Auto.... |
|
|
PRODUCTS |
Description |
casting products |
|
Dimensions (max) (mm) |
500 x 200 x 200* |
|
|
Weight (max) (kg) |
20 |
Function- Benefit
Function
- Loads molten metal, unloads the machine and cool down the part
- Removing excess material from die cast parts
Benefit
- Increased efficiency
- Prevention of occupational injuries
- Reduce menpower
Specifications
|
SPECIFICATIONS |
Rated voltage (V) |
380 * |
|
Capacity (kW) |
160 |
|
|
Pressure (bar) |
210 |
|
|
Max. casting volume (cm3) |
5278 |
|
|
Max. casting weight, filling rate 60% (kg) |
13 |
|
|
Plunger diameter (mm) |
50-120 |
|
|
Injection force dynamic (kN) |
137 - 288 |

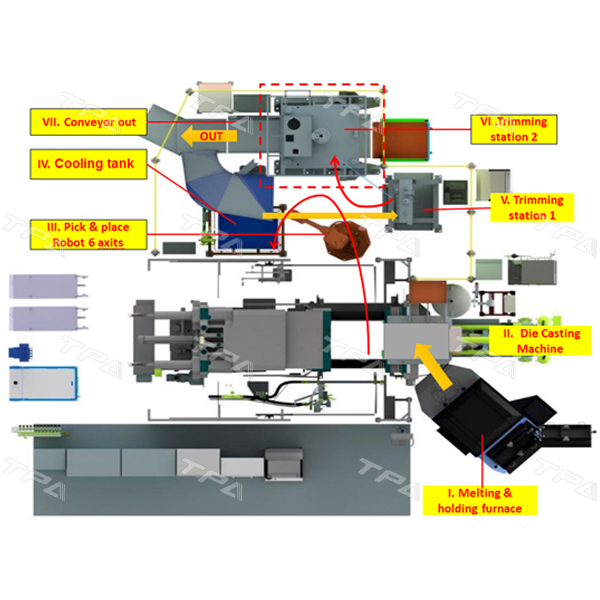

Process
|
PROCESS |
EQUIPMENT |
|
Melting & holding furnace |
Willize |
|
Casting |
Die Casting Machine |
|
Transfering |
chain conveyor, belt conveyor |
|
Pick & place |
Robot 6axis : ABB IRB600-60/2.05 ( FANUC, KUKA.. ) |
|
Cutting |
20 Ton Hydraulic Trim Press |

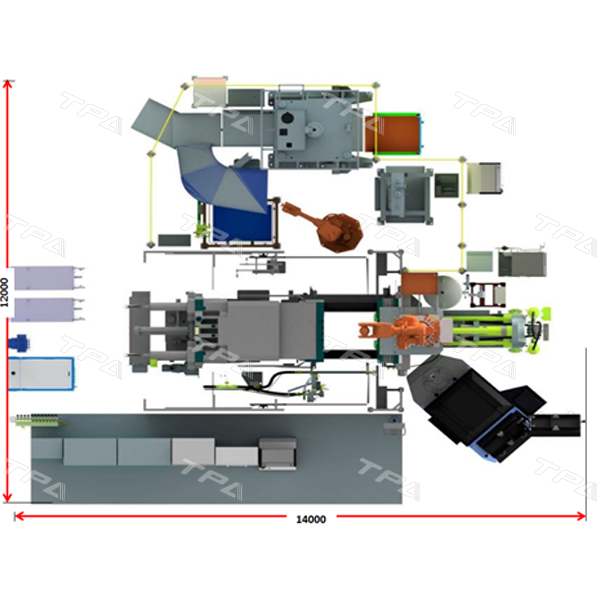

Layout
—————————————————————–
