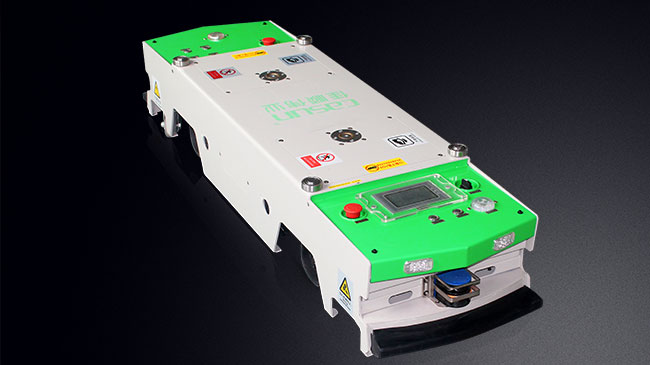

Automated Guided Vehicle
Mua ngay:
Mô tả:
✔️ Model: QFS1550V2
✔️ Manufacturer: TPA
✔️ Origin: Việt Nam
1. Product Description:

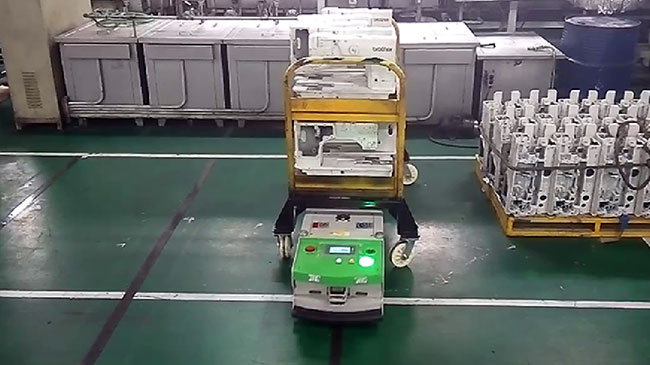

The one-way tunnel AGV lurks under the trolley and uses the tow bar to automatically lift, hook or drop the trolley. Compact structure and flexible running, it is widely used in many industries such as automobiles, home appliances, electrical appliances and electronics.
3. Specifications:
| Product name | Two ways tunnel Type AGV ( QFS1550V2) |
| Model | QFS1550V2 |

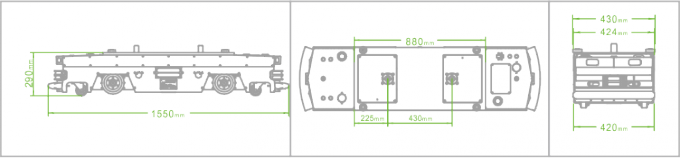

| Dimensions | L1550 * W420 * H330 mm |
| Load capacity | 500/800 kg |
| Minimum turning radius | 800mm |
| Guidance | Magnetic guidance |
| Travel Direction | Forward, turn left and right, branch |
| Travel speed | 0-45m/min(Or customizing)) |
| Guiding accuracy | ±10mm |
| Stopping accurac | ±10mm |
| Communication available | RF / Wifi |
| Driving mode | Differential driving |
| Power | DC24V |
| Workable | 24 hours by optimizing automatic charging |
| Ramp | ≤2° |
| Type | Tunnel type |
| Charging method | Manual charging / automatic charging |
| Battery | Lead acid battery / lithium battery |
| Life time | ≥10 years |
| Alarm | Sound and visual |
| Safety features | Front obstacle sensor+mechanical bumper sensor |
| Safety induction range | Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm |
4. Advantages:
Driver-less
Auto transportation
Charging automatically
—————————————————————–
