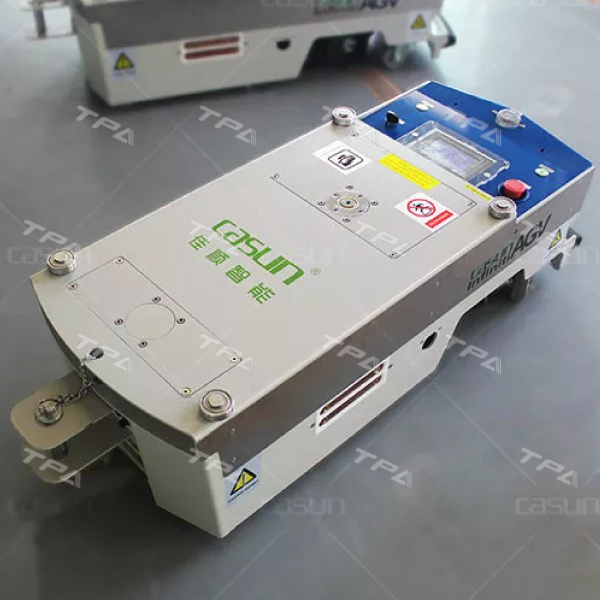

Driverless Mobile Robot Magnetic Tape AGV Automatic Transportation
✔️ Model: QF1100V2
✔️ Manufacturer: TPA
✔️ Origin: Việt Nam
1. Product Description:
The one-way tunnel AGV lurks under the trolley and uses the tow bar to automatically lift, hook or drop the trolley.
2. Application:

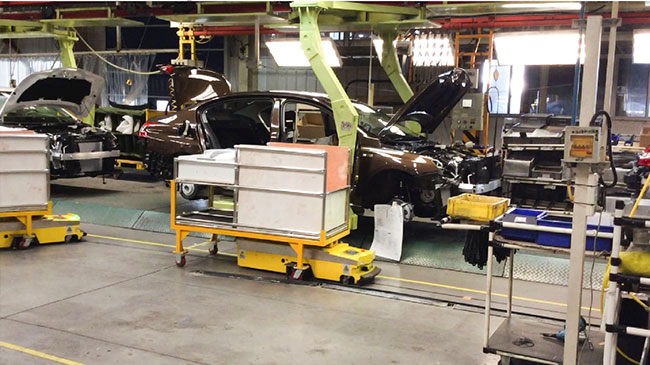

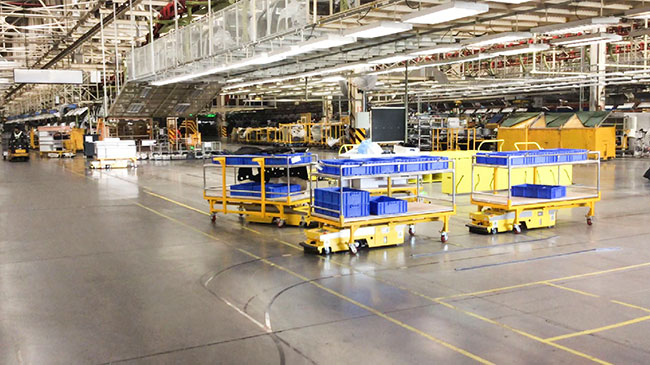

Compact structure and flexible running, it is widely used in many industries such as automobiles, home appliances, electrical appliances and electronics.
3. Specifications:
| Product name | Single Way Tunnel Type AGV (QF1100V2) |
| Model | QF1100V2 |

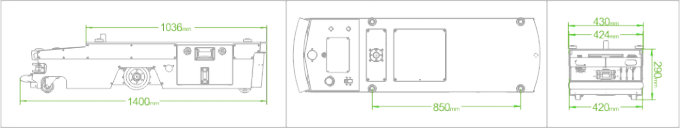

| Dimensions | L1100*W420*H330(mm) |
| Load capacity | 500Kg |
| Minimum turning radius | min 500mm |
| Guidance | Magnetic guidance |
| Travel Direction | Forward, turn left and right, branch |
| Travel speed | 0-45m/min(Or customizing)) |
| Guiding accuracy | ±10mm |
| Stopping accurac | ±10mm |
| Communication available | RF / Wifi |
| Driving mode | Differential driving |
| Power | DC24V |
| Workable | 24 hours by optimizing automatic charging |
| Ramp | ≤2° |
| Type | Tunnel type |
| Charging method | Manual charging / automatic charging |
| Battery | Lead acid battery / lithium battery |
| Life time | ≥10 years |
| Alarm | Sound and visual |
| Safety features | Front obstacle sensor+mechanical bumper sensor |
| Safety induction range | Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm |
4. Advantages:
Driver-less
Auto transportation
Charging automatically
—————————————————————–
