Hệ thống sản xuất Ni tơ

On site nitrogen production up to 99,999% purity
Novair has designed a high efficiency nitrogen generator based on the PSA technology. This is the perfect response to industrials that need high purity nitrogen and want to gain autonomy while reducing their operating costs.
Main features & benefits
•    Turnkey solution
•    Fully automatic process

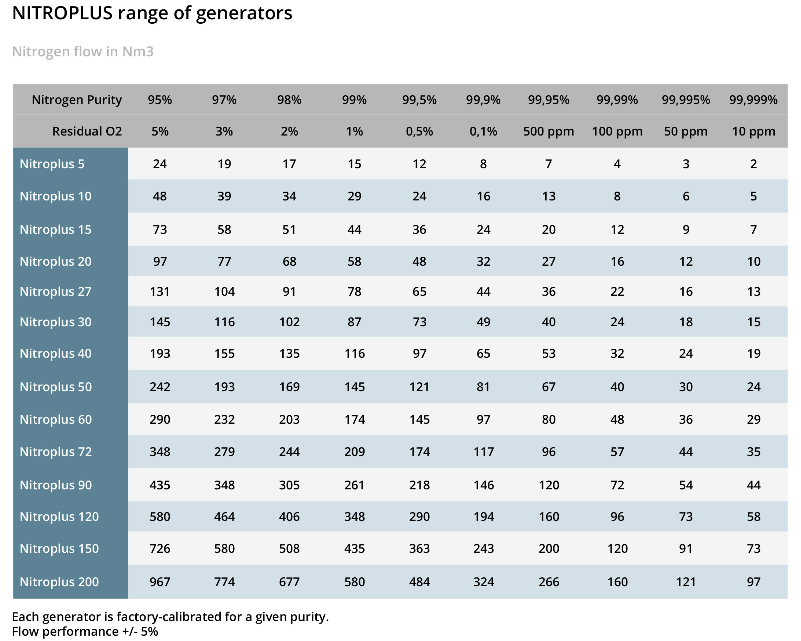

•    Various flow rates and purities available
•    Highly competitive production cost
•    Remote monitoring & alarm functions
Designed for
•    Food & beverage packing & processing
•    Laser cutting
•    Metal inerting
•    Laboratories / chromatography
•    Electronics

Optimised PSA technology

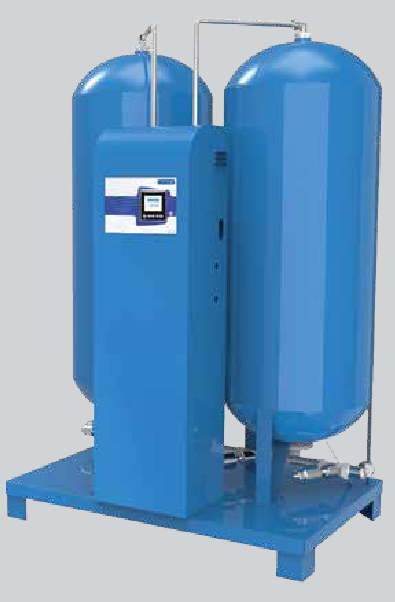

Nitroplus nitrogen generators by Novair Industries are based on the Pressure Swing Adsorption (PSA) process. This technology is a static separation of air gases through a specific molecular sieve capable to adsorb oxygen, carbon dioxide and water vapor under pressure. Novair R&D has optimized the process to obtain a high and stable nitrogen purity – up to 99,999%, at a very competitive cost.

Designed for a simple and quick installation, they include:
•    2 PSA sieve beds
•    1 monitoring system CPU Controller with digital screen
•    1 separate nitrogen receiver equipped for nitrogen service
•    1 air inlet filter (25 μm and 0.1 μm)
•    1 submicronic nitrogen outlet filter

High efficiency
For a long lasting performance, a low energy consumption and an easy & limited maintenance, Nitroplus generators feature :
•    Ergonomic design
•    High efficiency molecular sieve
•    Reliable, tested and controlled components
Their open–ended concept enables to interconnect several lines.

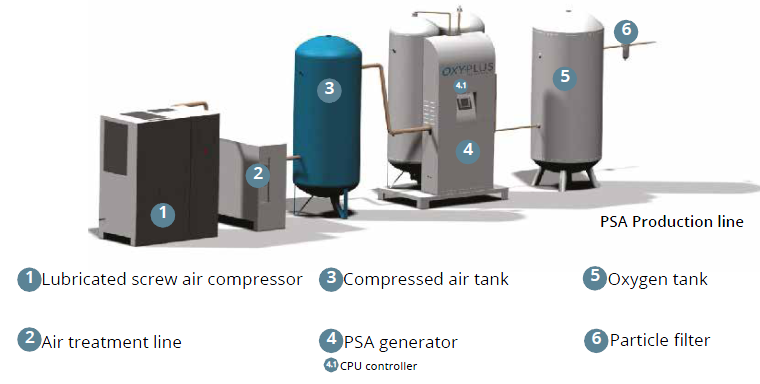

Additional features & available options
•    Air compressor
•    Air Dryer
•    Air tank

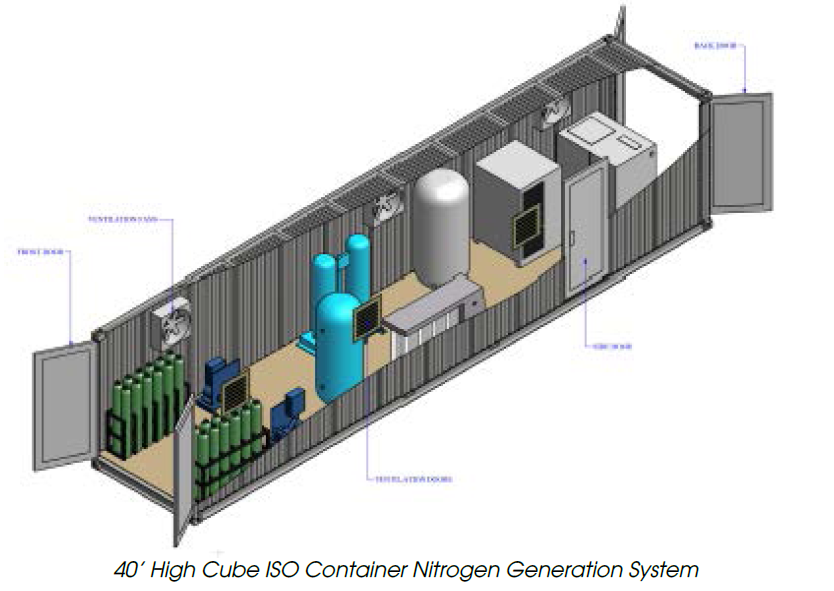

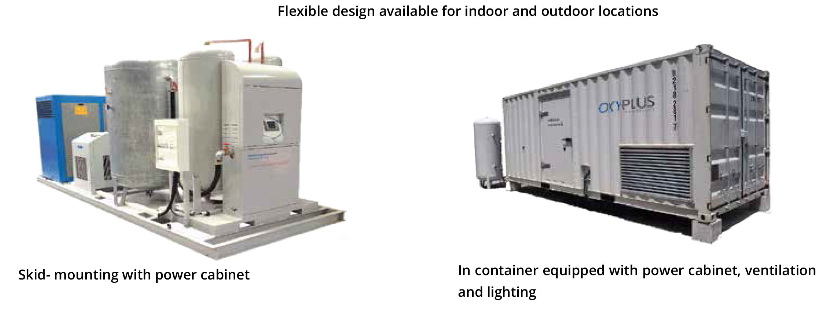

•    Containerized or skid mounted plant
•    Cylinder filling system
•    Gas booster
•    Gas analyzers
•    Flowmeter
•    Remote monitoring

Automatic monitoring

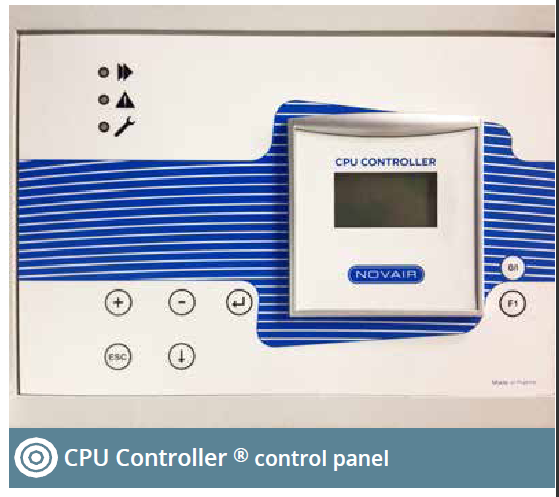

Nitroplus nitrogen generators are automatically managed by the CPU controller, a device based on a PLC system comprising a logic controller, a digital screen and an ergonomic control panel. Key informations such as nitrogen concentration, hour meter or alarm reports are displayed on CPU screen. Very easy to use, the CPU Controller is available in several languages.

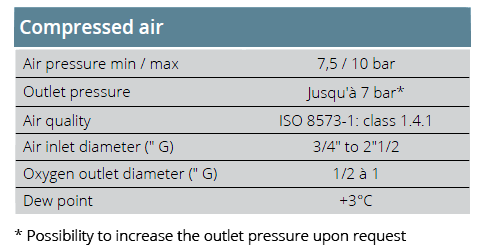

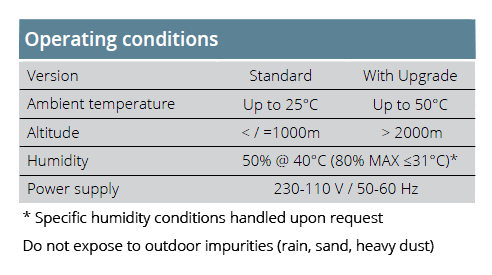

Inlet & environmental parameters


Plant room

1/ Dedicated room:
The plant room provided should be exclusively dedicated to the nitrogen production unit. It shall contain no storage or warehousing
of any product whatsoever. In particular, the presence of flammable materials is strictly prohibited.
• Minimum dimensions: according to the layout plan approved by Novair Industries (see example in the back).
• Ground: concrete slab to level.
• Overload: calculated for a loaf of 1 000 kg/m² minimum.
• Coating: smooth screed with floor paint or hard coating quartz type.
2/ Evacuation of condensate:
A connection point for the evacuation of condensed water linked with wastewater has to be provided in the room.
3/ Ventilation :
Provide a fresh air Intake – minimum 0.10 m2 per Kw and a air extraction ventilator at the top of the room.
Warm air compressor should be wrapped and vented outside through ducts made of sheet insulating double pots.
Avoid installing the evacuation of hot air at the same side as the entry of cold air.
The room temperature must be above +5 °C and below the maximum temperature in the defined specification.
4/ Electrical cabinet :
Power supply cabinet must be installed on premises.
Details of requested power features will be provided by Novair Industries for each facility.
It must include a ground line in accordance with the regulations in force.
5/ Lighting:
The room should be well lit, especially around compressor(s) and generator(s).
6/ Fire safety :
Security measures must be taken and displayed at the entrance of the premises:
- Smoking ban
- Open fire ban
- Sprinklers installation

—————————————————————–
