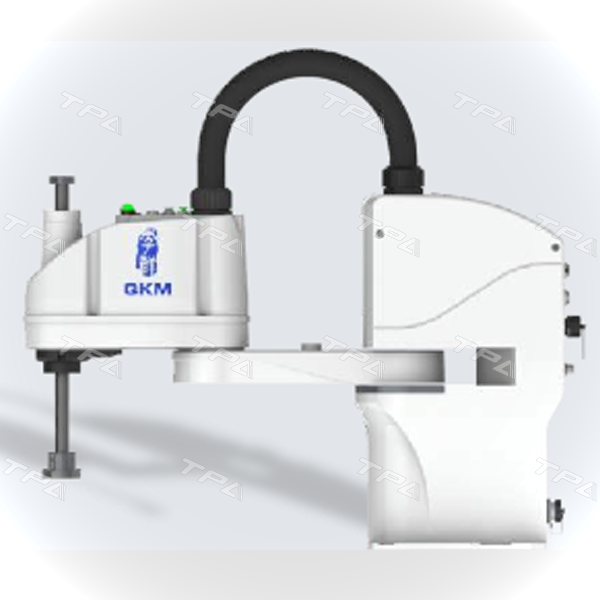

AH3 Robot
✔️Manufacturer: QKM
✔️ Origin: China
✔️ Built-in controller SCARA robot with small size and high speed
✔️ AH3 robot is characterized by high speed, high precision and convenient installation. It is small in size and powerful in function to meet customers' more applications.
Specifications
|
Item |
Specification |
|
|
Model |
AH3-0400 |
|
|
Arm length |
J1+J2 |
400 mm |
|
J1 |
225 mm |
|
|
J2 |
175 mm |
|
|
Max. speed |
J1 J2 |
6020 mm/s |
|
J3 |
1200 mm/ s |
|
|
J4 |
3000°/ s |
|
|
Working range |
J1 |
±135° |
|
J2 |
±145 |
|
|
J3 |
± 170 mm |
|
|
J4 |
± 360 |
|
|
Repeatability |
J1 J2 |
0.01 mm |
|
J3 |
±0 01 mm |
|
|
J4 |
±0, 01° |
|
|
Payload ( Rated ) |
1 kg |
|
|
Payload ( Max. ) |
3 kg kg·m 2 |
|
|
Allowable moment of inertia ( Rated ) |
0.005 kg·m 2 |
|
|
Allowable moment of inertia ( Max. ) |
0.05 2 |
|
|
Arm I/O interface |
6 general digital input ,4 digital output |
|
|
Base I/O interface |
20 general digital input ,14 digital output (expandable) |
|
|
Weight |
15 kg |
|
|
Rated voltage |
230 V a.c. 50/60 Hz |
|
|
Rated power |
1 kW |
|
|
Communication interface |
Ethernet, RS-232, RS-485 |
|
Features
- Weighing only 15 kg, the robot can be easily moved.
- Built-in controller and amplifiers without external control cabinet make it easy to install and take up significantly less footprint.
- Mobile rail mounting is available, which is adaptable to flexible layout and greatly saves space.
- Equipped with a new generation distributed architecture control system, it is more stable, smoother and easy to use.

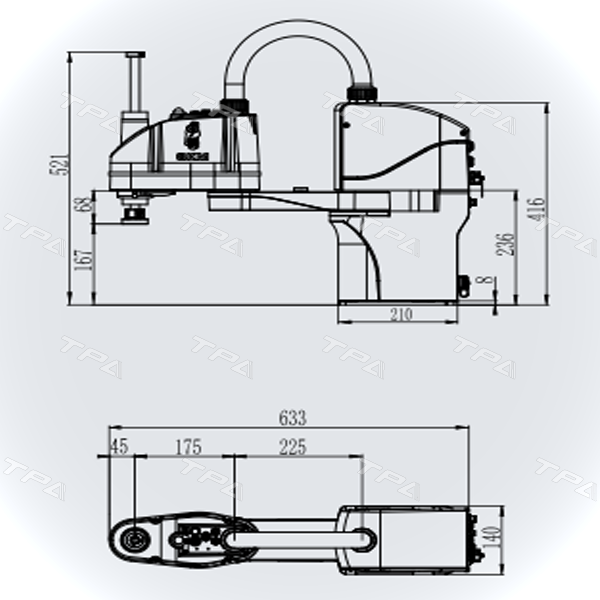

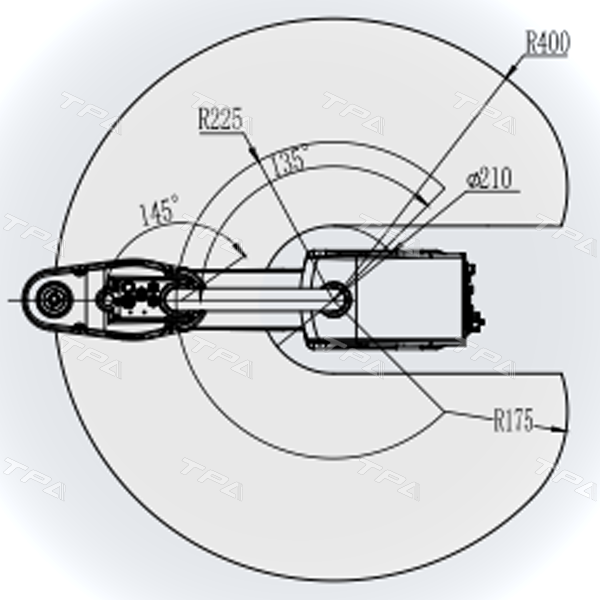

Layout:
—————————————————————–
