QR Code Inertial Navigation AGV
✔️ Model: CA-ZR1080V1
✔️ Manufacturer: TPA
✔️ Origin: Việt Nam
Detailed Product Description
| Model: | CA-ZR1080V1 | Navigation: | SLAM |
|---|---|---|---|
| Power: | DC48V | Drive Method: | Differential Driving |
| Battery: | Lithium | Load Capacity: | 300kg (customizable) |
Intralogistic Warehouse Slam AGV CE ISO9001 Automated Guided Vehicle
Product Description:
Product Description:Natural Guide AGV with differential speed driving, encoder-aid calculation and laser scanner positioning, benefits the user with more accurate positioning, easier installation, and minimum change to the field. With optional autonomous obstacle avoidance function, the flexibility of the AGV will be much more improved.
Application:
Widely used in home appliance and electronics industry for loading and uploading materials.
Characteristic:
- No landmarks, no ground construction.
- Deep independent thinking
- Independent teaching, memory and travel
Specifications:
| Product name | QR Code Inertial Navigation AGV |
| Model | BFJ850-320V2 |
| Dimensions | L850*W600*H320(mm) |
| Load capacity | 500kg(Or customizing) |
| Minimum turning radius | 0,360°driving |
| Guidance | Inertial navigation and QR code correction |
| Travel Direction | forward and backward, rotate 360° in place, branch |
| Travel speed | 0-1.2m/s |
| Guiding accuracy | ±10mm |
| Stopping accurac | ±10mm |
| Communication available | Wifi |
| Driving mode | Two-wheel differential drive |
| Power | DC48V |
| Workable | 24 hours by optimizing automatic charging |
| Ramp | ≤2° |
| Type | roll platform type |
| Charging method | automatic charging |
| Battery | Lithium battery |
| Life time | ≥10 years |
| Alarm | Sound and visual |
| Safety features | Front obstacle sensor+mechanical bumper sensor |
| Safety induction range | Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm |

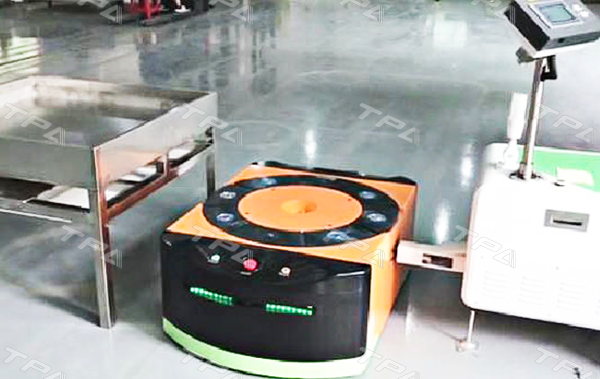

Hình ảnh QR Code Inertial Navigation AGV
—————————————————————–
