DESCRIPTION

Application

Assembly

Professions

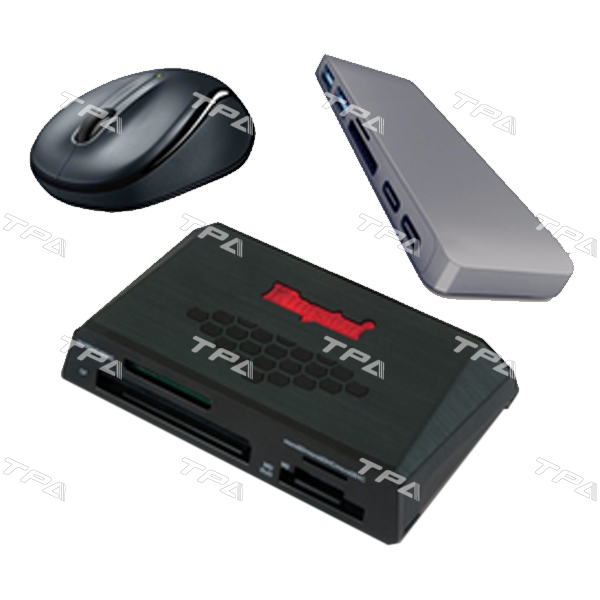

3C, plastic components...

PRODUCTS

Description

Electronic divice have protective covers (or Assembly unit )

Dimensions (max) (mm)

160 x160 x 80

Weight (max) (g)

330

SPECIFICATIONS

Rated voltage (V)

Capacity (kW)

2

Pressure (MPa)

0,4 - 0,6

Weight (Kg)

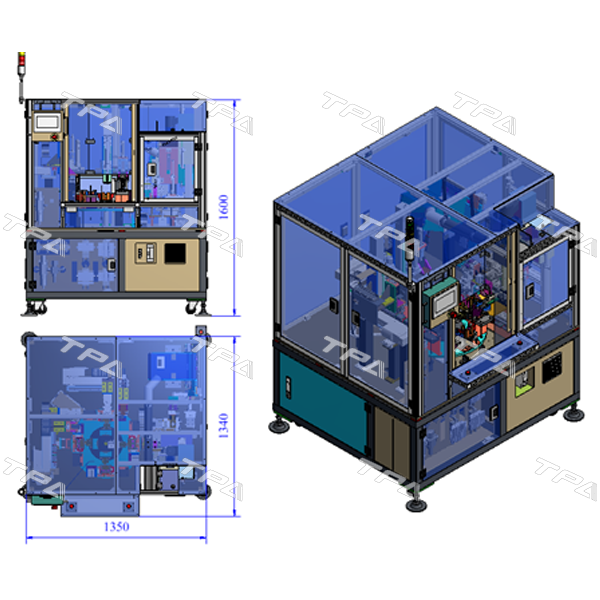

Dimensions (mm)

1350 x 1340 x 1600

Cycle time (s)

16

Accuracy (mm)

0.1

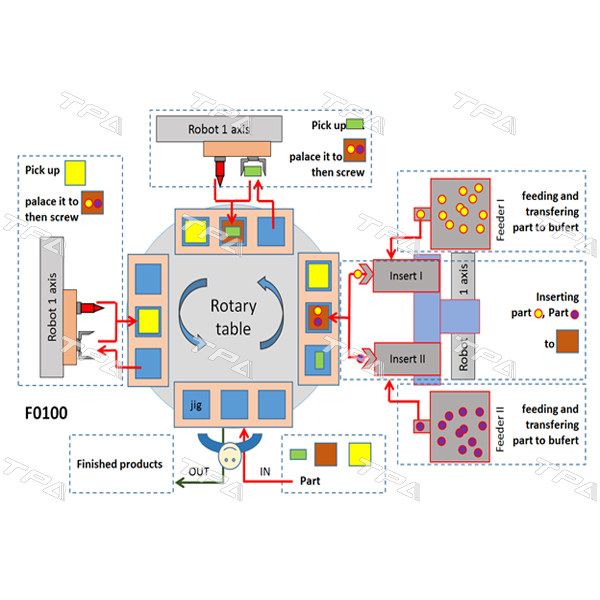

PROCESS

EQUIPMENT

Part feeder

Mechanical design.

Transfering

Robot 1 axis: Yamaha (IAI, SMC, Hiwin…)

Cylinder : SMC ( Festo, CKD… ).

Rotary tabble : CKD

Inserting

Mechanical design.

Rotary cylinder : SMC ( Festo, CKD… )

Screw

Screwdriver HIOS.
