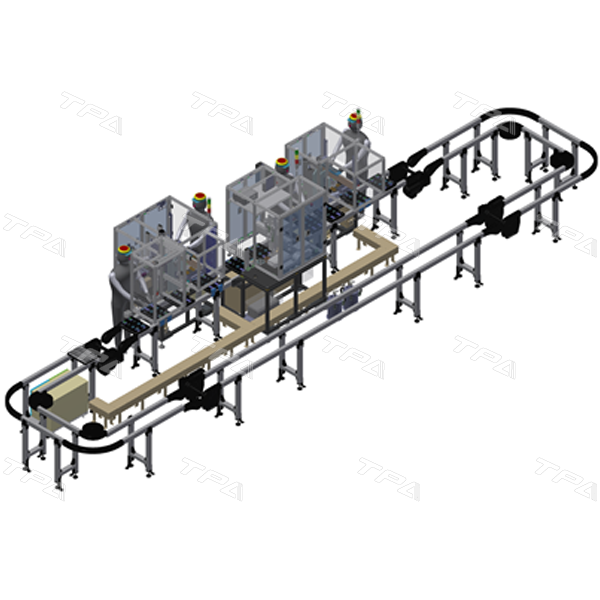

Speaker assemly line
✔️ Model: TPAD.F0600
✔️ Manufacturer: TPA
✔️ Origin: Việt Nam
Speaker assemly line

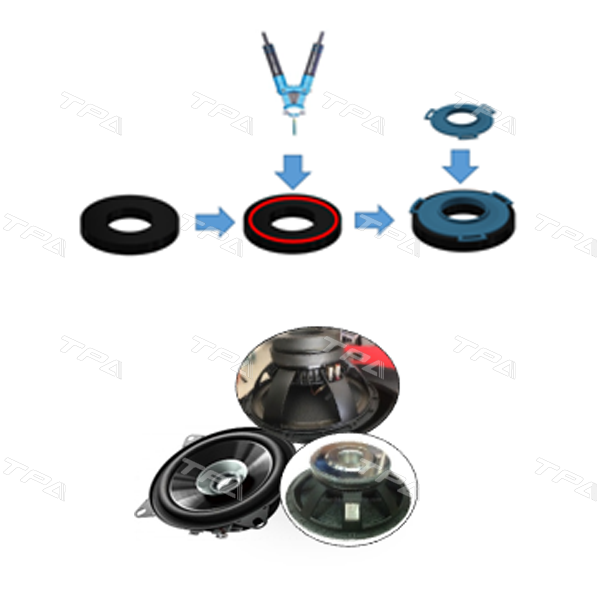

Product type
Speaker assemly line
|
DESCRIPTION |
Application |
Pick & place, Transfer, Assembly : (Speaker line) |
|
Professions |
3C, plastic components... |
|
|
PRODUCTS |
Description |
Speaker |
|
Dimensions |
D = 43 |
|
|
Weight (max) (kg) |
0.3 |
Function - Function
Function
The assembly line consists of many stages: conveyor moves jig to the positions: receive products, glue dispenser, attached components to the products.
Benefit
- Increase productivity.
- Reduce manpower.
Specifications
|
SPECIFICATIONS |
Rated voltage (V) |
220 |
|
Capacity (kW) |
2 |
|
|
Pressure (MPa) |
0,4 - 0,6 |
|
|
Weight (Kg) |
1398 |
|
|
Dimensions (mm) |
9142 x 2705 x 2149 |
|
|
Cycle time (s) |
3 |
|
|
Accuracy (mm) |
0,15 |
|
|
Spraying accuracy (mm) |
Accuracy of ±1%, >99% of the time |
Process
|
PROCESS |
EQUIPMENT |
|
Transfering |
Plastic chain conveyor, robot 3 axis Yamaha (IAI, SMC, Hiwin…) |
|
Inserting |
Mechanical design |
|
Pick & place |
Mechanical design |
|
Alignment |
Camera : Cognex ( Sick) Software : TPA |

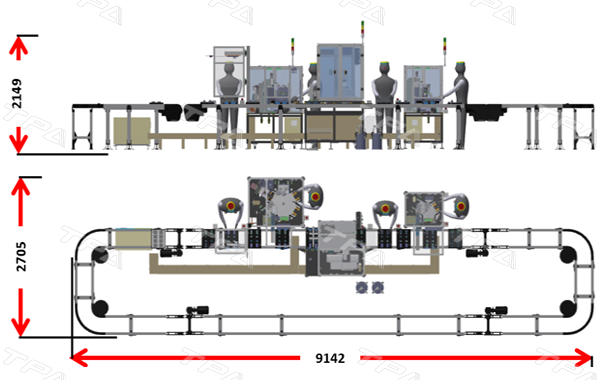

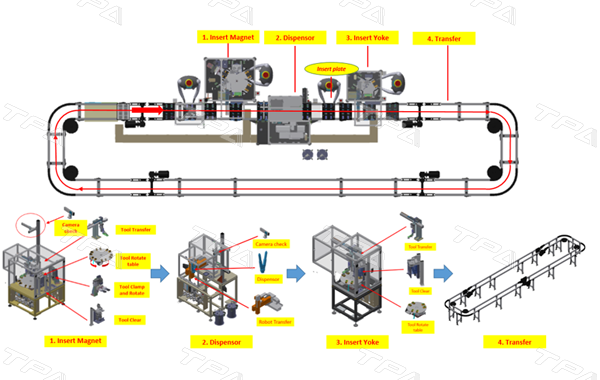

Layout
—————————————————————–
