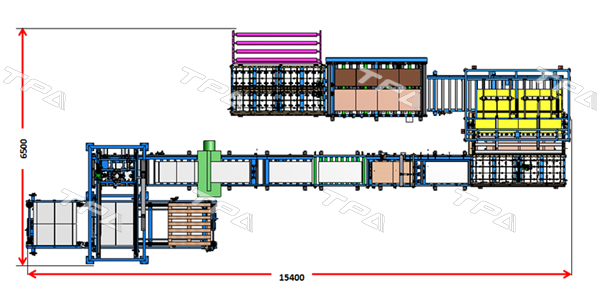

Packaging & Palletizing system (tiles, plasterboard)

DESCRIPTION

Application

Packaging, pallerizing

Professions

CPG, F&B, Metal, Auto, Construction..

PRODUCTS

Description

Large & heavy products : tiles, plasterboard…

Dimensions (max) (mm)

600 x 1200 x 100*

Weight (max) (kg)

20

SPECIFICATIONS

Rated voltage (V)

220

Capacity (kW)

Pressure (MPa)

0,4 - 0,6

Overall Width (mm) (conveyor)

1400 ( 1200, 1000, 800,600 ) *

Max speed (m/s) (conveyer)

1.6 *

Cycle time (s) (one box)

10

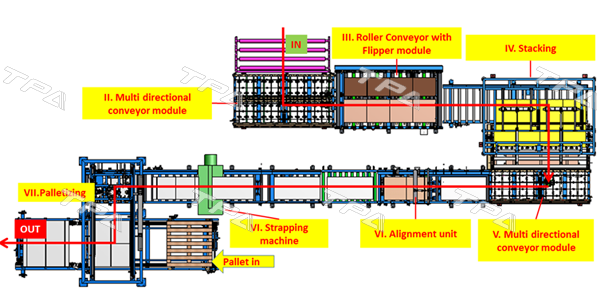

PROCESS

EQUIPMENT

Roller conveyor, chain conveyor

Flipping

Roller conveyor add flipper

Stacking

Mechanical design.

Alignment

Mechanical design .

Packaing

Strapping machine.

Palletizing

Mechanical design : motor, rack and pinions, vacuum.
