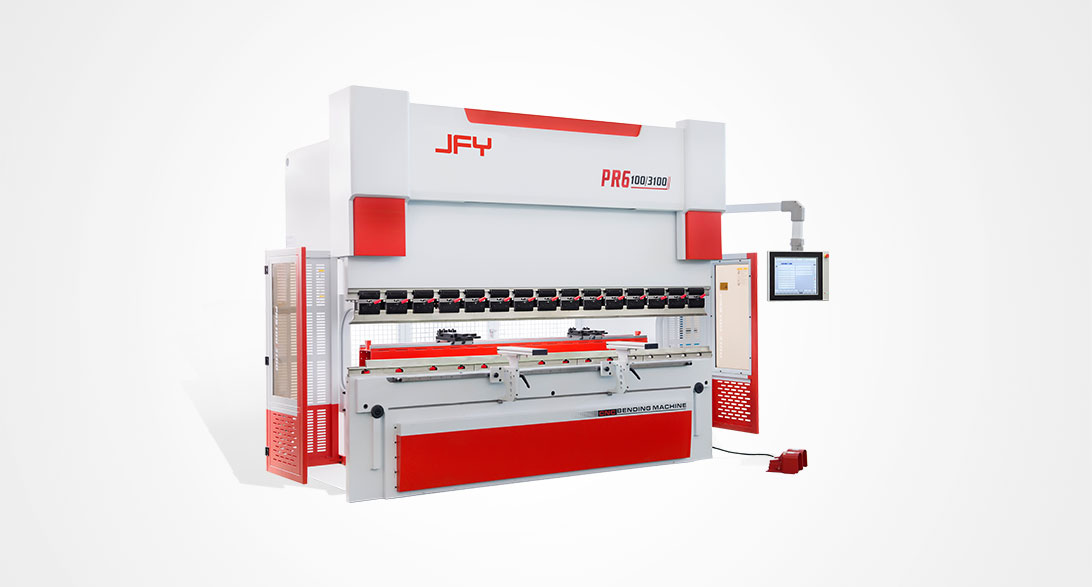

PR6 / PM6 Series CNC Bending Machine

Mua ngay:
Mô tả:

  • Thông tin sản phẩm

may-chan-PR6



So sánh hiệu suất của PR6 và PM6

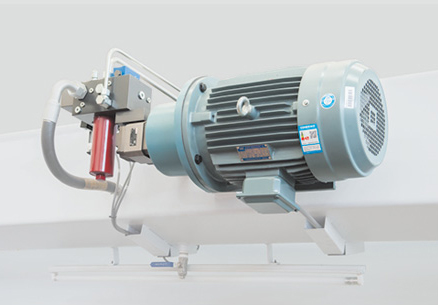

PR6 sử dụng động cơ thông thường làm nguồn động lực chính của máy bơm thủy lực.

PR6

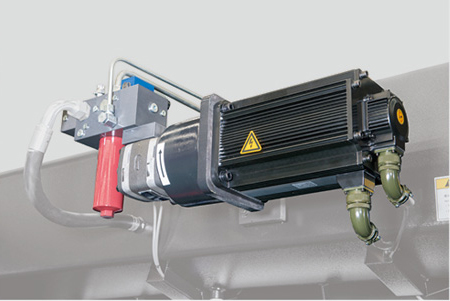

PM6 sử dụng động cơ servo làm nguồn động lực chính của bơm thủy lực, tiết kiệm năng lượng đến 40%. Hiệu suất làm việc của ram trượt sẽ được tăng hoàn toàn từ 7-20%. Nhiệt độ dầu giảm 10-20 độ C

PM6

So sánh tốc độ Ram trượt giữa máy PR6 100T và PM6 100T

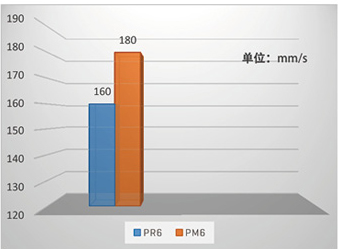

toc-do-khong-tai
So sánh tốc độ không tải

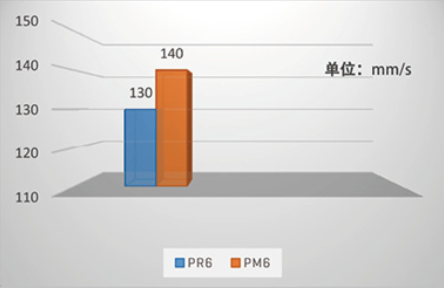

toc-do-tro-ve

So sánh tốc độ tốc độ trở về

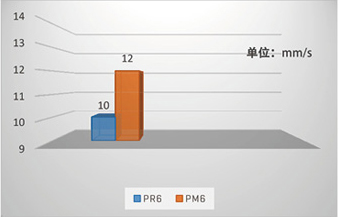

toc-do-lam-viec

So sánh tốc độ làm việc

Tính năng

  • The electric and hydraulic system controls the synchronized movement of the two oil cylinders, thus ensures the high synchronized accuracy, bending accuracy and repeat positioning accuracy.
  • Featured with hydraulic automatic compensation system to avoid the effects on the workpiece due to the deformation of ram. The compensation is controlled by CNC system with high accuracy.
  • The throat deformation compensation device prevents the detection element from being affected by the fuselage strain during the working process, which ensures the bending accuracy.
  • The frame is assembled in one time after welding, it is processed by CNC pentahedron processing center, ensuring the rigidity and processing accuracy of the frame.

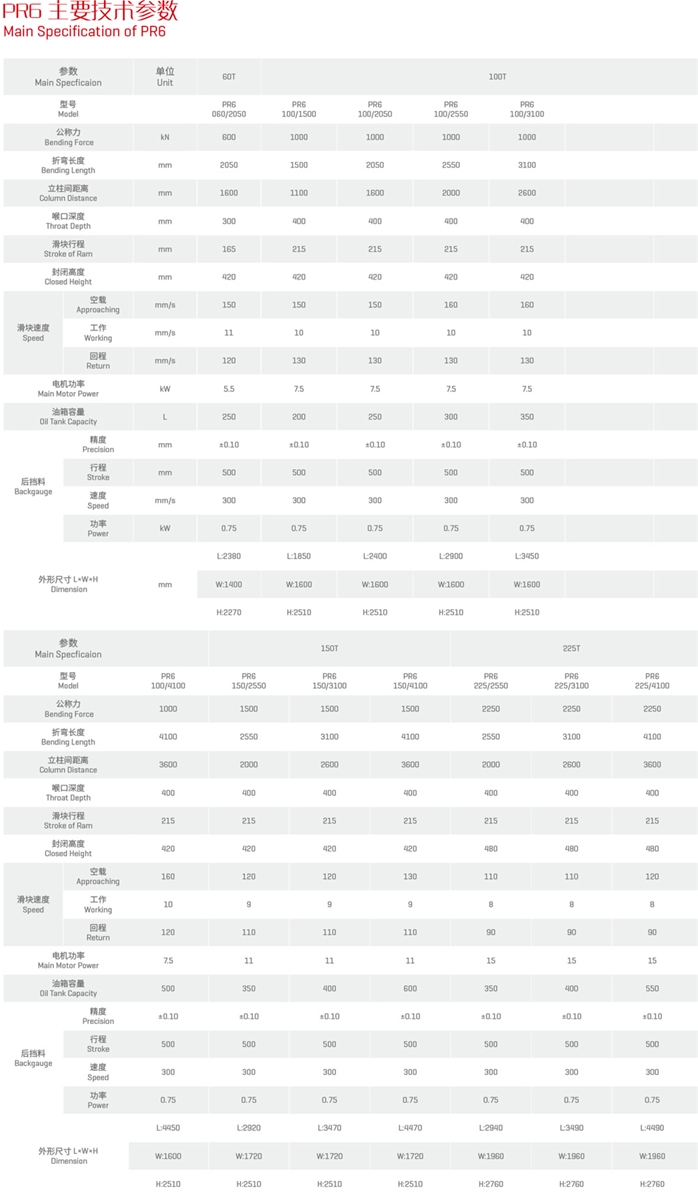

Thông số kỹ thuật

thong-so-ky-thuat







—————————————————————–
