Screw feeding – Screwing machine for PCB

Problems

• It’s hard to track and manage process flow
• Quality does not meet the requirement

Solutions

• Use gantry 1 axis to pick up parts
• Robot insert PCB to housing
• Put the product on the jig for pressing process
• Laser engraving

Benefit

• Increase productivity
• Ensure the quality
• Can apply for many model

Products

Industry

• 3C (Computers, telecommunications, consumer electronics)

Equipment specifications

Press tool

• Force: 5 kN
• Stroke < 200 mm
• Press speed < 250 mm/s

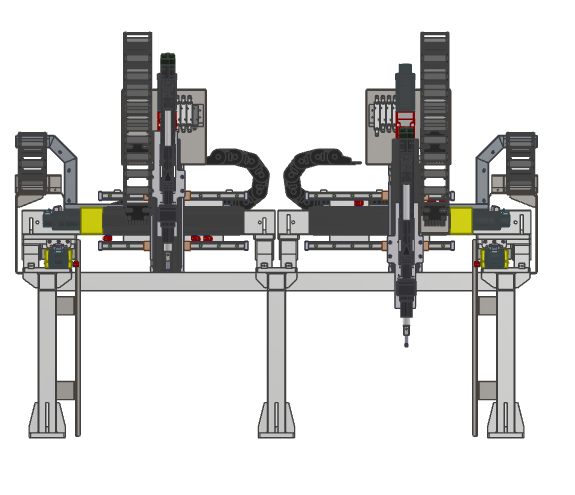

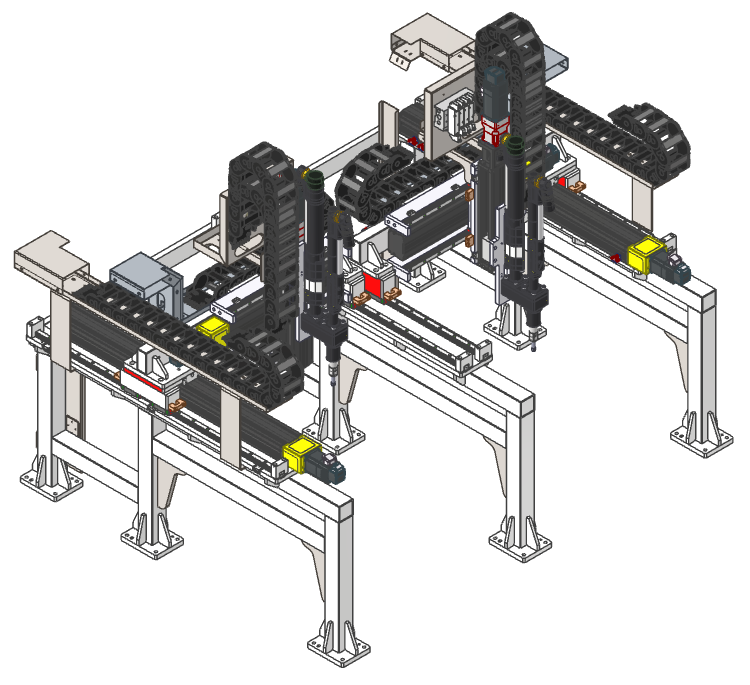

Gantry system

• Equip with suction cup
• Can pick up 4  PCB at once

Specifications

1. Dimension: 2713 x 700 x 1900 mm
2. Voltage input:  1 phase  220 V  50Hz
3. Power: 2 Kw
4. Air pressure: 0.4-0.6 Mpa
5. Capacity: 400 JPH

Equipments

1. Gantry system
2. Pick & place robot
3. Press tool
4. Jig
5. Pneumatic system
6. Control box, HMI, conveyor

—————————————————————–
