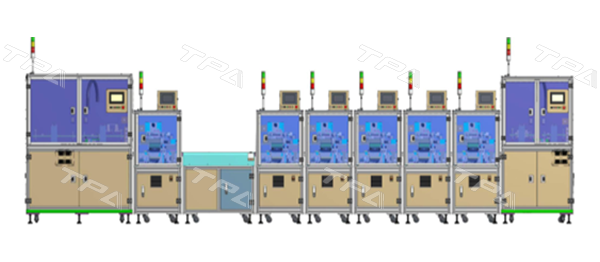

Surface protection film taping machine line
✔️ Model: TPAD.F4500
✔️ Manufacturer: TPA
✔️ Origin: Việt Nam
Surface protection film taping machine line

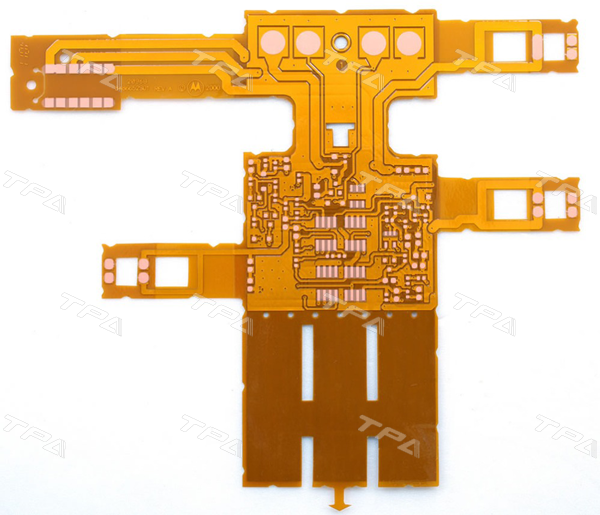

Product type :FCB, PCB
Surface protection film taping machine line
|
DESCRIPTION |
Application |
Pick & Place: Labelling |
|
Professions |
3C |
|
|
PRODUCTS |
Description |
FCB, PCB needs to attach protective film at many positions |
|
Dimensions (max) (mm) |
200 x 100 x 4 |
|
|
Weight (max) (g) |
330 |
Function- Benefit
Function
Taping the Protective Films to the surface of products
- Increase productivity.
- Reducing manpower.
Specifications
|
SPECIFICATIONS |
Rated voltage (V) |
220 |
|
Capacity (kW) |
4 |
|
|
Pressure (MPa) |
0,4 - 0,6 |
|
|
Weight (Kg) |
|
|
|
Dimensions (mm) |
7500 x 1320 x 1870 |
|
|
Cycle time (s) |
6,3 |
|
|
Accuracy (mm) |
0.1 |
Process
|
PROCESS |
EQUIPMENT |
|
Transfering |
Belt conveyor Scara robot:Mitsubisshi ( Yamaha, Hiwin, ABB, QKM… ) |
|
Film dispenser |
Mechanical design. |
|
Positioning |
Mechanical design. |
|
Taping |
Mechanical design. |
|
Inspection |
Camera : Cognex ( Sick) Software : Bee Vision |

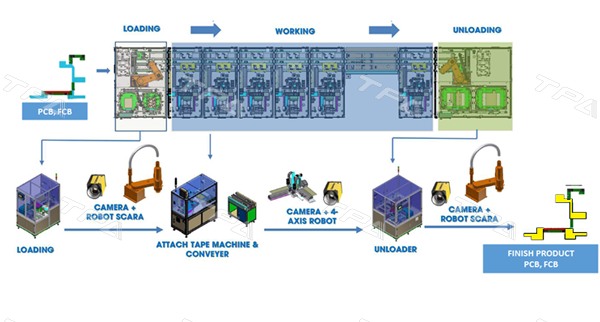

Layout
—————————————————————–
