flowplus & flowscreen

Flowplus¹⁶

Existing dosing systems can be easily extended and ensured – with the pressure sensor flowplus. The piezoresistive relative sensor recognizes even smallest pressure changes in the volume flow rate and changes it into electrical signals. Evaluation units like flowscreen can analyse these signals.

The very small design of the sensor simplifies an implementation – even with small installation space. The flowplus can be integrated into existing processes via a luer lock connection. It is easy to clean and therefore changing materials or changings in the system configuration can be done quick and easy.

The coating of the flow channel – which is out of a perfluorelastomere – guarantees very high chemical resistance. This means, the sensor is suitable for nearly all materials in the fields of medical technology, bio technology or also electronics. And next to the ViscoTec dispensers also perfectly suitable for micro dosing technology from preeflow.

Flowscreen

Flowscreen

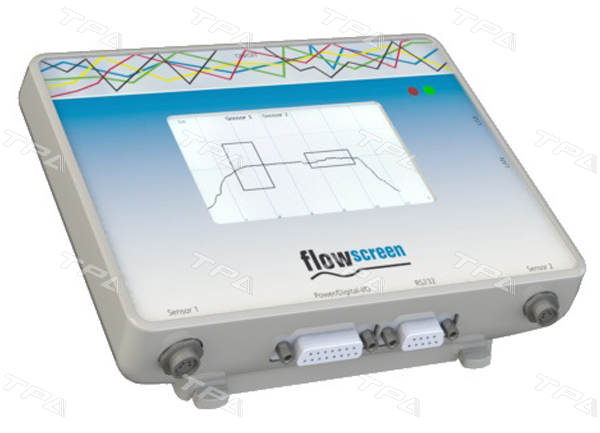

Flowscreen is an evaluation unit for individual process monitoring of dosing applications. Based on the specially developed software the pressure course can be visualized. To pressure changes, for example resulting from changes in viscosities or air inclusions, you can react immediately. Due to various communications and control options a process assurance for applications in automated serial processes is guaranteed.

Flowplus in combination with flowscreen means best possible repeatability of dosing processes – in bio technology, medical technology and also in industrial manufacturing, for example electronics production.

—————————————————————–
