AGV Magnetic Tape Auto Docking With Roller Platform
✔️ Model: BFQD1800V2
✔️ Manufacturer: TPA
✔️ Origin: Việt Nam
1.Product Description:

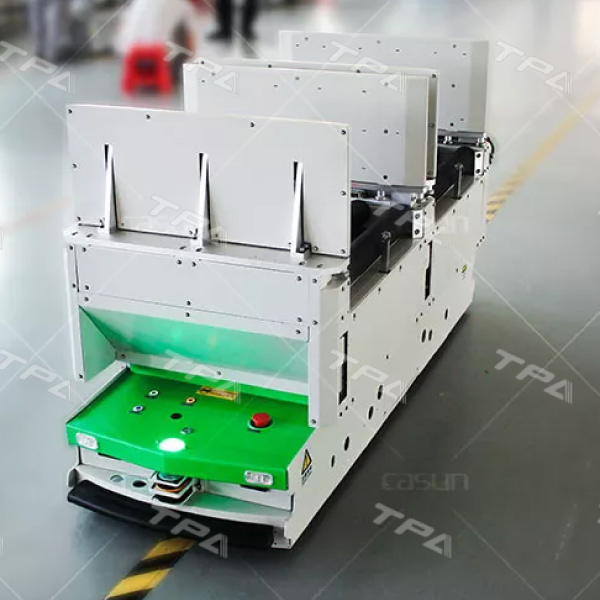

Roller platform type 360 degree turning AGV (steering wheel drive) adopts a hybrid guidance technology (hardware with magnetic guidance+software with laser guidance ) which developed by our own company . Can spin around 360 degrees and walk with quad motion , can be used flexibly in narrow channels. The platform roller on AGV delivers materials and docks with rollers beside the production line seamlessly. It’s a high-end intelligent AGV product mainly used at the site with the complex scheduling system.
2. Application:
Widely used for intralogistics solution for loading and uploading materials.
3.Specifications:
| Product name | Omni Direction Steering Wheel Tunnel Type with Roller Platform AGV |
| Model | BFQD1800V2 |

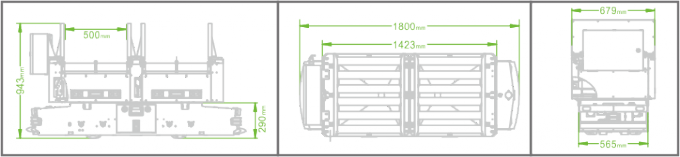

| Dimensions | L1800*W680*H950mm or customizable |
| Load capacity | 200kg |
| Minimum turning radius | 0, Omni-directional driving |
| Guidance | Magnetic guidance |
| Travel Direction | 360°Omni-directional driving |
| Travel speed | 0-35m/min(Or customizing)) |
| Guiding accuracy | ±10mm |
| Stopping accurac | ±10mm |
| Communication available | RF / Wifi |
| Driving mode | Differential driving |
| Power | DC24V |
| Workable | 24 hours by optimizing automatic charging |
| Ramp | ≤2° |
| Type | Platform type, omni-directional AGV |
| Charging method | Manual charging / automatic charging |
| Battery | Lead acid battery / lithium battery |
| Life time | ≥10 years |
| Alarm | Sound and visual |
| Safety features | Front obstacle sensor+mechanical bumper sensor |
| Safety induction range | Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm |
4. Advantages:
Omni directional driving
Flexible in narrow aisles
Auto docking with roller platform
—————————————————————–
