Single Way Tugger Type AGV
✔️ Model: QY1080V2
✔️ Manufacturer: TPA
✔️ Origin: Việt Nam
1. Product Description:
Single Way Tugger Type AGV has towing capacity of 1000kg. AGV draws the trolley to another designated point through the guidance of magnetic stripe and reading the landmark’s instruction, then AGV drop-off the trolley automatically. It can draw a couple of trolley at a time and have the function of multi-site stopping.
2. Application:

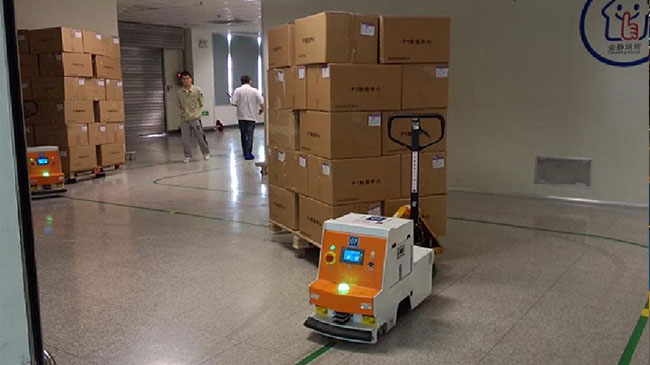

AGV project has implemented in AUX ( home appliance company )
3. Specifications:
| Product name | Single Way Tugger Type AGV |
| Model | QY1080V2 |

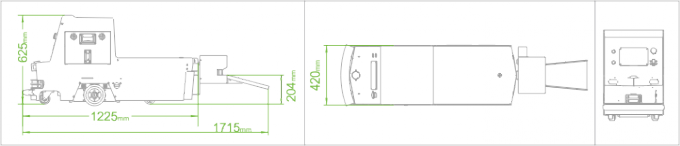

| Dimensions | L1080*W420*H625(mm) |
| Load capacity | 500Kg/1000kg |
| Minimum turning radius | min 500mm |
| Guidance | Magnetic guidance |
| Travel Direction | Forward, backward, left/right turning & U turn |
| Travel speed | 0-45m/min(Or customizing)) |
| Guiding accuracy | ±10mm |
| Stopping accurac | ±10mm |
| Communication available | RF / Wifi |
| Driving mode | Differential driving |
| Power | DC24V |
| Workable | 24 hours by optimizing automatic charging |
| Ramp | ≤2° |
| Type | Tugger type |
| Charging method | Manual charging / automatic charging |
| Battery | Lead acid battery / lithium battery |
| Life time | ≥10 years |
| Alarm | Sound and visual |
| Safety features | Front obstacle sensor+mechanical bumper sensor |
| Safety induction range | Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm |
4. Advantages:
Towing payload up to 2T
Connect the rack and transport
Drop off the rack automatically.
—————————————————————–
