Automated Guided Vehicle CJPSB15V1

Mua ngay:
Mô tả:

✔️ Model: CJPSB15V1​

✔️ Manufacturer: TPA

✔️ Origin: Việt Nam

  • Thông tin sản phẩm

1. Product Description:

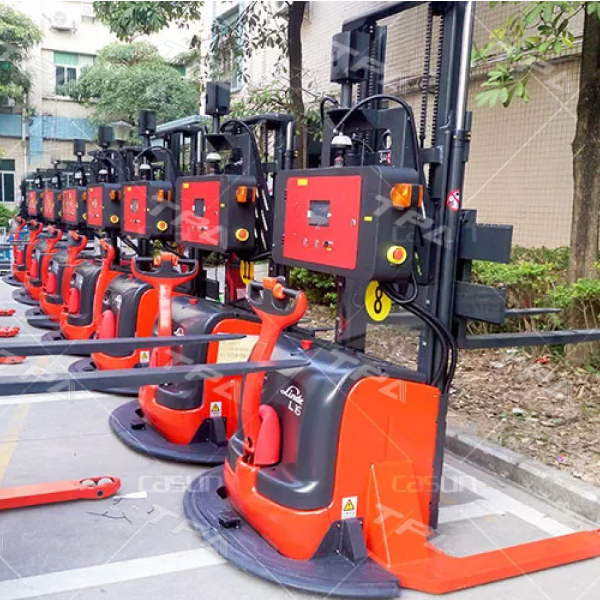

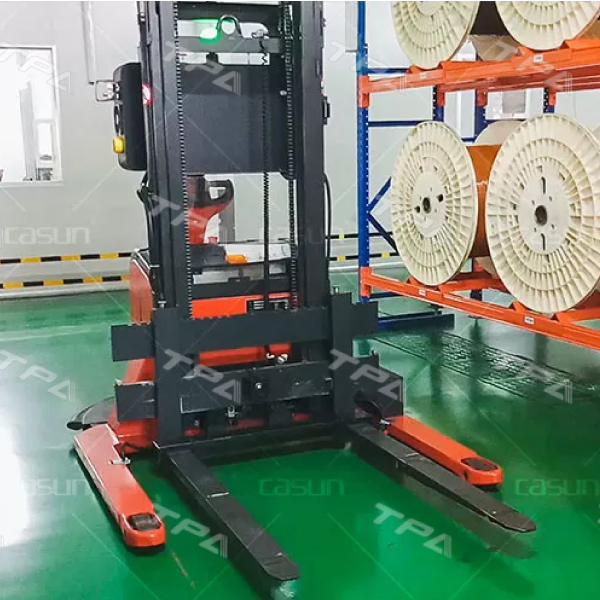

Product Description:Laser guiding forklift AGV (pallet stacker type) series products were developed according to the actual needs of different industries, mainly composed of AGV car body and lifting gear, etc. and are used for lifting & handling work with empty pallet , loading tray and paper rolls,etc.

2. Application:

Widely used for intralogistics solution for loading and uploading materials.

3. Characteristic:

Laser guidance, no need of magnetic tape and tap, easy to maintain.

Could lift up to 2.9m or design based on customer’ requirement.

Maximum capacity is 1.5T or design based on customer’ requirement.

Be more flexible, and adaptable for different environments.

Precise positioning, error value is in 10mm.

4. Specifications:

Product name Omni Direction Steering Wheel Tunnel Type with Roller Platform AGV
Model BFQD1800V2
Dimensions L1800*W680*H950mm or customizable
Load capacity 200kg
Minimum turning radius 0, Omni-directional driving
Guidance Magnetic guidance
Travel Direction 360°Omni-directional driving
Travel speed 0-35m/min(Or customizing))
Guiding accuracy ±10mm
Stopping accurac ±10mm
Communication available RF / Wifi
Driving mode Differential driving
Power DC24V
Workable 24 hours by optimizing automatic charging
Ramp ≤2°
Type Platform type, omni-directional AGV
Charging method Manual charging / automatic charging
Battery Lead acid battery / lithium battery
Life time ≥10 years
Alarm Sound and visual
Safety features Front obstacle sensor+mechanical bumper sensor
Safety induction range Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm





—————————————————————–
