HL6 Robot
✔️Manufacturer: QKM
✔️ Origin: China
✔️ Flexible and powerful
✔️ HL 6 robot is the f i rst six- axis robot QKM developed for complicated applications , whose
✔️ Maximum payload is 6 kg.With 700 mm and 900 mm arm length models, HL6 is easily available for more automation solution.
Specifications
|
Item |
Specification |
|
|
Model |
HL6-0700 |
HL6-0900 |
|
Arm length |
700 mm |
900 mm |
|
Payload ( Rated ) |
3 kg |
3 kg |
|
Playload (Max) |
6 kg |
6 kg |
|
Repeatability |
±0.02 mm |
±0.03 mm |
|
Cycle time 25 / 305 / 25 ( 1kg ) |
0.39 s |
0.37 s |
|
Mount |
Floor, Ceiling, Wall |
Floor, Ceiling, Wall |
|
Weight |
58 kg |
59 kg |
|
Working range . |
J1~J6：±170°，±110°，±136°，±185°，±120°，±360° |
|
|
Max speed ( Each axis ) . |
J1~J6： 384 °/s，240 °/s，336 °/s，441 °/s，450 °/s，720 °/s |
|
|
Max speed |
7000 mm/s |
|
|
Allowable moment of inertia ( Rated ) |
J4：0.06kg·m² |
|
|
Allowable moment of inertia ( Max. ) |
J4~J6: 0.3kg.m², 0.3kg.m², 0.1kg.m² |
|
|
I/O Interface ( Arm ) |
6 digital input, 2 digital output (expandable) |
|
|
I/O Interface ( Base panel ) |
6 digital input, 5 digital output (expandable) |
|
|
Rated voltage |
230 V a.c. 50/60 Hz |
|
|
Rated power |
1 5 kW |
|
|
Ingress protection |
IP65 |
|
|
Working environment |
Ambient Temp 0~40 Ambient related humidity 95% |
|
|
Communication interface |
Ethernet, RS-232, RS-485 |
|
Features
- Leading speed. With optimization of structure and heat dissipation design, standard cycle time is as fast as 0.37 s.
- Built-in controller realizes high electromagnetic compatibility, less footprint and movable guide rail installation.
- Innovative symmetrical working range makes full best use of space.
- With IP65 protection level, the robot perfectly adapts to harsh working environment.;

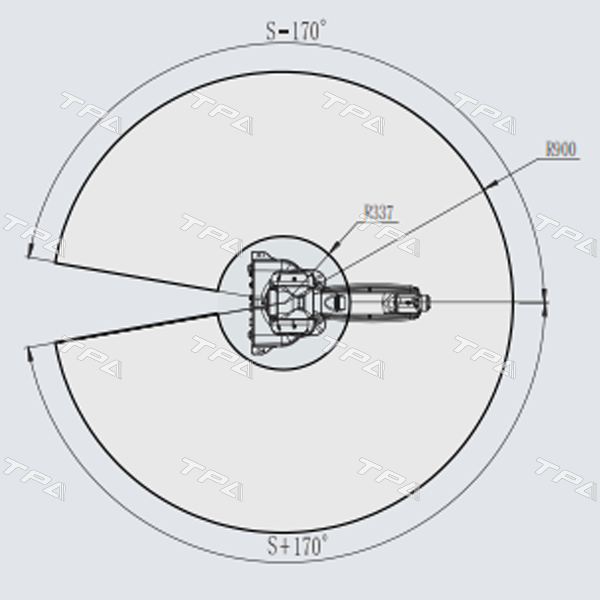

Layout
—————————————————————–
