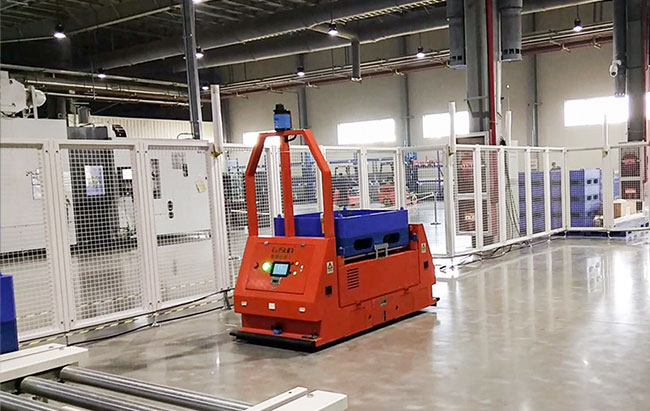

Laser Guiding Roller Platform AGV
✔️ Model: LKDD1700V
✔️ Manufacturer: TPA
✔️ Origin: Việt Nam
1. Product Description:
It is through laser positioning technology, no need other positioning facilities on the ground, no need to lay magnetic strips; the driving path is flexible and changeable, and the driving route can be changed only by computer, which is widely used, and can be applied to the transportation of warehouse pallets, and production work environment which needs to be automatically pick up and down the material, etc.
2. Application:
Widely used for intralogistics solution for loading and uploading materials.
3. Specifications:
| Product name | Laser Guiding Roller Platform AGV |
| Model | / |
| Dimensions | Customized type |
| Load capacity | 500kg/1000kg(Or customizing) |
| Minimum turning radius | min 750mm |
| Guidance | laser guidance |
| Travel Direction | Forward, backward, turn left and right & branch |
| Travel speed | 0-75m/min(Or customizing)) |
| Guiding accuracy | ±10mm |
| Stopping accurac | ±10mm |
| Communication available | Wifi |
| Driving mode | Steering wheel driving |
| Power | DC24V |
| Workable | 24 hours by optimizing automatic charging |
| Ramp | ≤2° |
| Type | Roll platform type |
| Charging method | Manual charging / automatic charging |
| Battery | Lead acid battery / lithium battery |
| Life time | ≥10 years |
| Alarm | Sound and visual |
| Safety features | Front obstacle sensor+mechanical bumper sensor |
| Safety induction range | Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm |
—————————————————————–
