Omni Direction Tunnel Type with Lifting Platform AGV
✔️ Model: BFJ1500V2
✔️ Manufacturer: TPA
✔️ Origin: Việt Nam
Detailed Product Description
| Model: | BFJ1500V2 | Dimensions: | L1500*W800*H765(mm) |
|---|---|---|---|
| Load Capacity: | 1200kg | Travel Speed: | 0-45m/min(Or Customizing)) |
| Travel Direction: | 360°Omni-directional Driving | Power: | DC24V |
AGV- BFJ1500V2

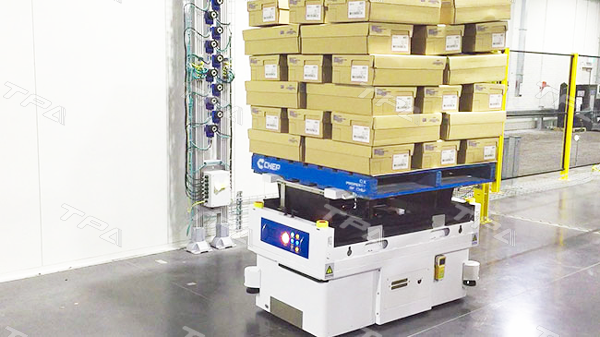

Omni Directional Magnetic Tape AGV Tunnel Type with Lifting Platform AGV
Product Description:
Omni-directional lifting Platform AGV: The material can be lifted to the set height and transported to the support plate, and the space required for running is small. In a narrow space environment, the normal AGV can not complete the docking work, and its 360-degree rotation function can meet the requirements of setting different angles running on site, and effectively utilize the on-site space. Mainly suitable for environment with small space and heavy lifting required.
Application:
This AGV is customized project for a cold supply chain logistic transportation. Widely used in intralogistics system.
Specifications:
| Product name | Omni Direction Tunnel Type with Lifting Platform AGV |
| Model | BFJ1500V2 |
| Dimensions | L1500*W800*H765(mm) |
| Load capacity | 1200kg |
| Minimum turning radius | 0, Omni-directional driving |
| Guidance | Magnetic guidance |
| Travel Direction | 360°Omni-directional driving |
| Travel speed | 0-45m/min(Or customizing)) |
| Guiding accuracy | ±10mm |
| Stopping accurac | ±10mm |
| Communication available | RF / Wifi |
| Driving mode | Differential driving |
| Power | DC24V |
| Workable | 24 hours by optimizing automatic charging |
| Ramp | ≤2° |
| Type | Lifting platform |
| Charging method | Manual charging / automatic charging |
| Battery | Lead acid battery / lithium battery |
| Life time | ≥10 years |
| Alarm | Sound and visual |
| Safety features | Front obstacle sensor+mechanical bumper sensor |
| Safety induction range | Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm |
Advantages:
- Omni directional lifting
- Automatic scanning barcode when AGV rotate 360 degree
- Able to work in a narrow space
AGV- BFJ1500V2
—————————————————————–
