1. Product Description:
Single Way Tugger Type AGV (Steering Wheel Drive)has towing capacity of more than 2 tons, ater arriving to designated spot, hang the skip on the drawhook manually, AGV draw the skip to another designated spot through the guidance of magnetic stripe and reading the landmark’s instruction, then AGV drop-off the skip automatically. It can draw a couple of skips at a time and have the function of multi-site stopping.
2. Application:

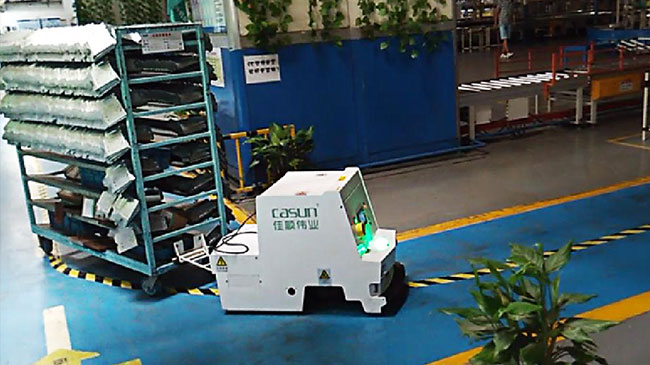

AGV project has implemented in AUX ( home appliance company )
2000kg Loading Unidirectional Tugger AGV For Cosmetic Industry Long Machine Life
3. Specifications:
Product name |
Tow Type AGV Mobile Rail Guidance One Way Steering Drive 2000kg Loading Automation for Cosmetic Industry |
Model |
QYD1185V2 |

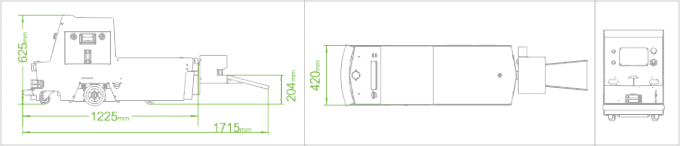

Dimensions |
L1080*W420*H625(mm) |
Load capacity |
2000kg |
Minimum turning radius |
min 600mm |
Guidance |
Magnetic guidance |
Travel Direction |
Forward, backward, left/right turning & U turn |
Travel speed |
0-45m/min(Or customizing)) |
Guiding accuracy |
±10mm |
Stopping accurac |
±10mm |
Communication available |
RF / Wifi |
Driving mode |
Steering driving |
Power |
DC24V |
Workable |
24 hours by optimizing automatic charging |
Ramp |
≤2° |
Type |
Tugger type |
Charging method |
Manual charging / automatic charging |
Battery |
Lead acid battery / lithium battery |
Life time |
≥10 years |
Alarm |
Sound and visual |
Safety features |
Front obstacle sensor+mechanical bumper sensor |
Safety induction range |
Detecting range ≤3m, adjustable; Emergency braking distance: <20mm |
4. Advantages:
Towing payload up to 2T
Connect the rack and transport
Drop off the rack automatically.
2000kg Loading Unidirectional Tugger AGV For Cosmetic Industry Long Machine Life
—————————————————————–
