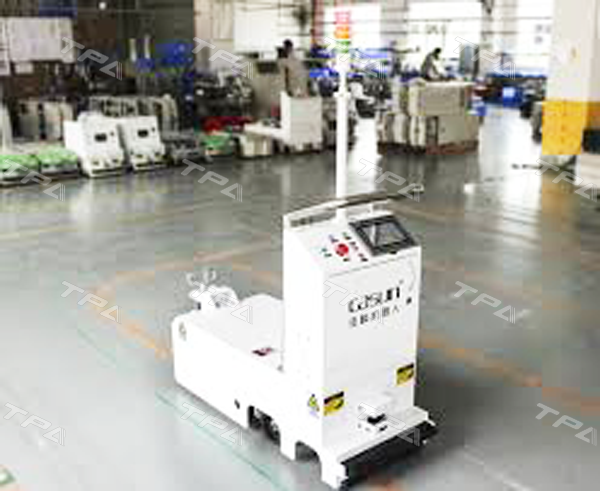

Single Way Tugger Type AGV (L Type)
✔️ Model: QY1250V1
✔️ Manufacturer: TPA
✔️ Origin: Việt Nam
Detailed Product Description
| Name: | Single Way Tugger Type AGV (L Type) | Model: | QY1250V1 |
|---|---|---|---|
| Dimensions: | L1250xW450xH890(mm) | Load Capacity: | 500Kg/1000kg |
| Travel Speed: | 0-45m/min(Or Customizing)) | Guiding Accuracy: | ±10mm |
| Guidance: | Magnetic Guidance | Minimum Turning Radius: | Min 600mm |
| Travel Direction: | Forward, Turn Left And Right, Branch | Stopping Accurac: | ±10mm |
| Communication: | RF / Wifi | Driving Mode: | Differential Driving |
| Power: | DC24V | Ramp: | ≤2° |
| Charging Method: | Manual Charging / Automatic Charging | Battery: | Lead Acid Battery / Lithium Battery |
| Life Time: | ≥10 Years | Alarm: | Sound And Visual |
| Safety Features: | Front Obstacle Sensor+mechanical Bumper Sensor |
QY1250V1
One Way Magnetic Tape AGV Material Handling Tugger Type AGV , L Type
Product Description:

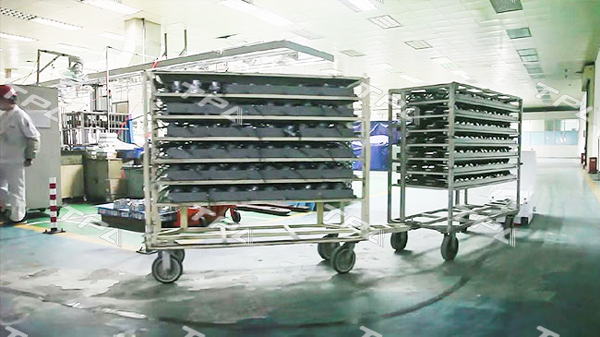

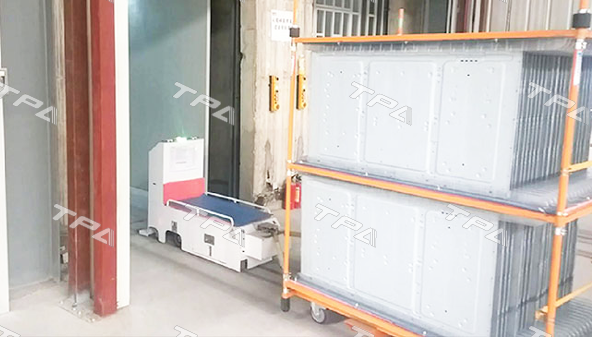

One-way tugger type AGV(L- type) can draw skip using the rear device and load the pallet, rack, workbin,etc . on the back at the same time. AGV draw the skip to designated spot through the guidance of magnetic stripe and reading the landmark’s instruction, then AGV drop-off the skip automatically. It can draw a couple of skips at a time and have the function of multi-site stopping.
Application:
Widely used for intralogistics solution for loading and uploading materials.
Specifications:
| Product name | Single Way Tugger Type AGV (L Type) |
| Model | QY1250V1 |
| Dimensions | L1250xW450xH890(mm) |
| Load capacity | 500Kg/1000kg |
| Minimum turning radius | min 600mm |
| Guidance | Magnetic guidance |
| Travel Direction | Forward, turn left and right, branch |
| Travel speed | 0-45m/min(Or customizing)) |
| Guiding accuracy | ±10mm |
| Stopping accurac | ±10mm |
| Communication available | RF / Wifi |
| Driving mode | Differential driving |
| Power | DC24V |
| Workable | 24 hours by optimizing automatic charging |
| Ramp | ≤2° |
| Type | Tugger type |
| Charging method | Manual charging / automatic charging |
| Battery | Lead acid battery / lithium battery |
| Life time | ≥10 years |
| Alarm | Sound and visual |
| Safety features | Front obstacle sensor+mechanical bumper sensor |
| Safety induction range | Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm |
Advantages:
- One AGV transport more than 1 racks
- Communicate with elevator automatically
—————————————————————–
