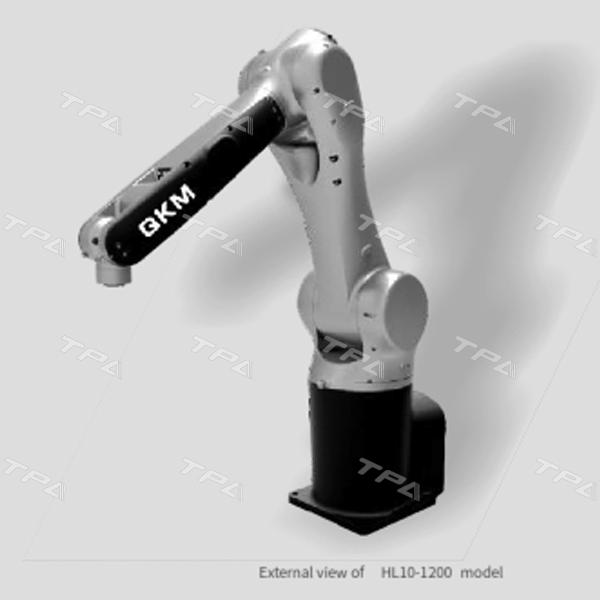

HL 10 Robot
✔️Manufacturer: QKM
✔️ Origin: China
✔️ Smooth motion and large payload
✔️ HL10 is a one-machine six-axis robot with a maximum payload of 10kg. It has two arm lengths of 900mm and 1200. With a spherical workspace and rich software functions, it is precise and powerful to meet more flexible layouts and application.
Specifications
|
Item |
Specification |
|
|
Model |
HL10-0900 |
HL10-1200 |
|
Arm length |
900 mm |
1200 mm |
|
Payload ( Rated ) ( . ) |
5 kg |
5 kg |
|
Playload Max |
10 kg
|
10 kg |
|
Repeatability |
± 0.03mm |
± 0.04mm |
|
Mount |
Floor, Ceiling, Wall |
Floor, Ceiling, Wall |
|
Weight |
96 kg |
100 kg |
|
Working range |
J1~J6：±170°，±110°，±136°，±185°，±120°，±360° |
|
|
Max speed ( Each axis ) |
J1~J6： 216°/ s, 216°/s, 264°/ s, 330°/ s ,450°/ s, 450 °/ s |
|
|
Max speed |
8000 mm/s |
|
|
Allowable moment of inertia ( Rated) |
J4: 0.09 kg·m² ： kg·m， kg·m， kg·m |
|
|
Allowable moment of inertia ( Max. ) |
J4~J6: 0.65kg·m² ,0.65kg·m², 0.17kg·m² |
|
|
I/O Interface ( Arm ) |
6 digital input, 2 digital output (expandable) |
|
|
I/O Interface ( Base panel ) |
6 digital input, 5 digital output (expandable) |
|
|
Rated voltage |
230 V a.c. 50/60 Hz |
|
|
Rated power |
2 kW |
|
|
Ingress protection |
IP65 |
|
|
Working environment |
Ambient Temp: 0~40℃; Ambient related humidity ≤95% |
|
|
Communication interface |
Ethernet, RS-232, RS-485 |
|
Features
- Smooth motion and large symmetrical working range realize maximum production efficiency.
- With higher payload, the robot can run in high speed and low vibration with complex fixtures for a long time.
- The whole machine is dustproof and waterproof to reach IP65 perfectly for harsh environment.

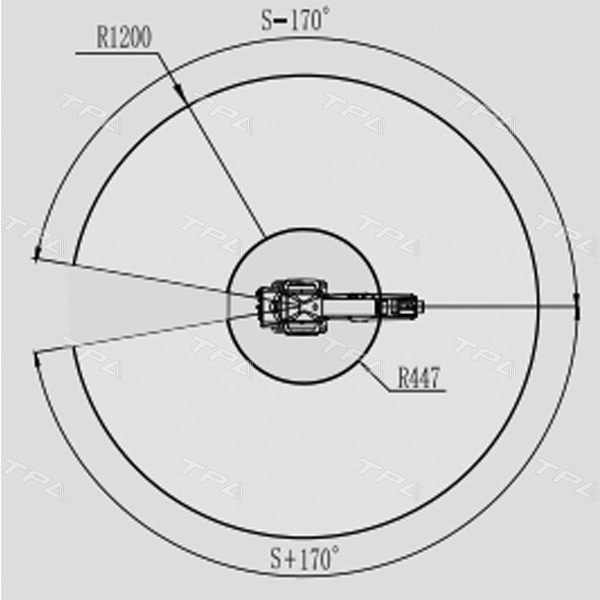

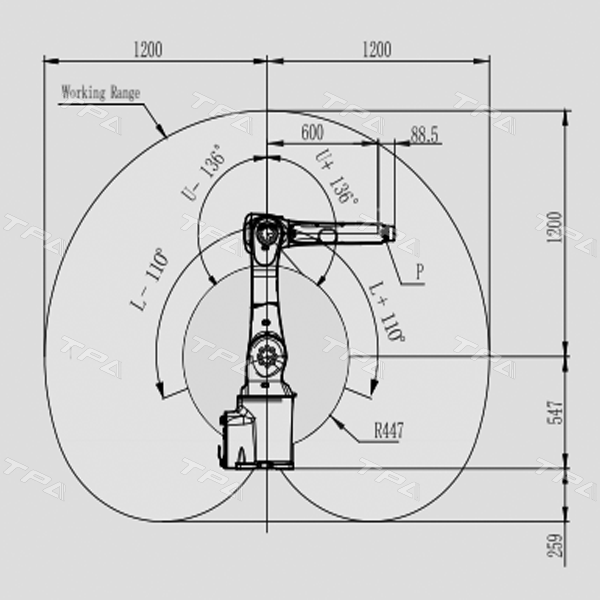

Layout
—————————————————————–
