QKM Digital Input and Output

QKM Digital Input and Output

Mua ngay:
Mô tả:

✔️Manufacturer: QKM
✔️ Origin: China

✔️QDIO is a digital I/O module to expand the signal of the master controller. It has two network  ports, which is freely connected to the master controller via cascading or daisy-chain topology.

  • Thông tin sản phẩm

Specifications

Item

Specification

Model

QD1-01-3232

QD1-01-1616

Size

260 mm(L)*110 mm(W)*140 mm(H)

180 mm(L)*110 mm(W)*140 mm(H)

I/O Interface

32 input / 32 output

16 input / 16 output

Operating speed

adaptive10/100 M

Communication interface

RJ 45(X2)

Input mode

PNP (standard), NPN (optional)

Input signal "0"

0~5 V

Input signal "1"

15~28 V

Output mode

NPN

Output Drive capability

200 mA(persistent)

Rated voltage

24 V d.c.(20.4~28.8 V d.c)

Features

  • Modbus TCP bus protocol is supported, and many Ethernet bus protocols can be supported after upgrade.
  • Supports multi-slave cascade topology.
  • I/O interface with strong anti-interference and power protection.  High integration and easy installation.

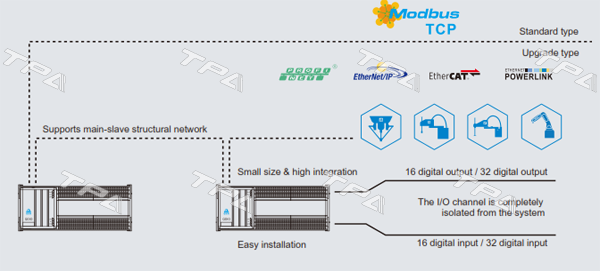

Layout

Layout



—————————————————————–
